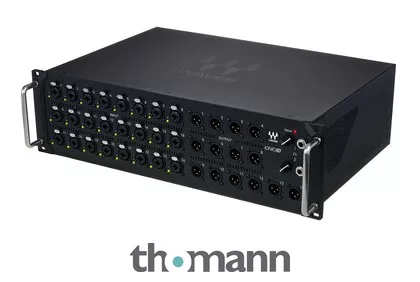

Stagebox
- 24 In / 18 Out SoundGrid stagebox with high audio quality
- 24 mic/line inputs with Waves Signature preamps
- Stereo AES input and output
- Analogue input impedance selection: Classic 2 kO / modern 7 kO
- Seamless integration with the eMotion LV1 live mixer
- 24 line outputs: selectable between 18 and 24 dBU
- 2 Independent headphone outputs
- Sample rates: 44.1, 48, 88.2 and 96 kHz
- Robust 3U housing suitable for rack installation
- Optional external power supply unit (not included)
- Dimensions: 48.2 x 31.1 x 13.1 cm
- Weight: 6.7 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2025
- Item number602056
- Sales Unit1 piece(s)
- Network Protocol WSG
- Connector RJ45
- Input Channels 24
- Output Channels 18
- Digital Inputs 1
- Digital Outputs 2
- Width482 mm
- Depth in mm311 mm
- Height131 mm
- Weight6,7 kg
- Mounting Height3 U
- 19″ RackkitNo
