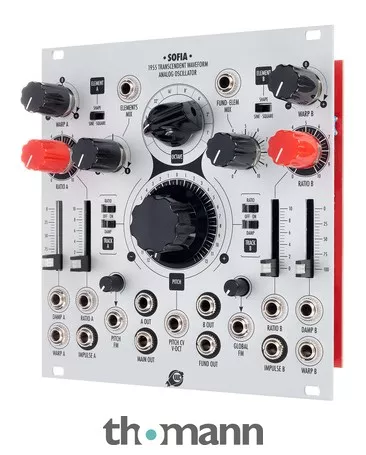

Eurorack Module
- Analogue VCO for complex waveforms
- Triangle-core oscillator with pitch control and octave selector switch
- Two ripple elements, based on synthesis of formant sounds (FOF)
- Ratio, warp, damping and waveform (sine/rectangle) are adjustable per ripple element
- Element mix control with CV input
- Adjustable mix of sine fundamental tone and ripple elements (with CV input)
- CV inputs for all parameters
- Pitch CV input (1V/oct.)
- CV inputs with attenuators for Pitch FM and Global FM
- Outputs for the main signal, fundamental tone, ripple elements A&B, impulses A&B (decay curve of the elements)
- Current consumption: 90mA (+12V) / 80mA (-12V)
- Width: 24 TE
- Depth: 30 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2022
- Item number549039
- Sales Unit1 piece(s)
- Analogue Yes
- Digital No
- Width 24 TE / HP
