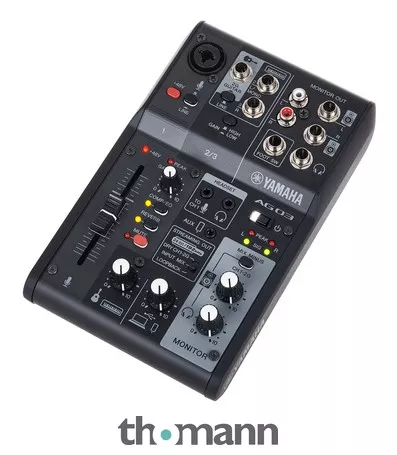

Combined USB 2.0 audio interface and mixing console
- 24 bit / 192 kHz
- +48 V phantom power switchable
- Pad switch
- DSP effects such as compressor, equaliser and reverb
- 60 mm fader
- FX bypass (via optional footswitch)
- iPad compatible with optional Camera Connection Kit (not included)
- 1 Mic/line input: XLR/jack combo connector
- 1 Hi-Z instrument input
- 2 Line inputs: 6.3 mm jack (input 2 switchable between Hi-Z and line)
- 2 Line outputs: 6.3 mm jack
- 2 Line outputs: RCA
- Stereo headphone output: 6.3 mm jack
- Footswitch connection
- Headset connection: 2x 3.5 mm mini-jack (earphone and microphone)
- AUX input: 3.5 mm mini-jack stereo
- USB-C connection
- Power supply via USB (5V, 500mA)
- Dimensions: 129 x 63 x 202 mm
- Weight: 0.8 kg
- Colour: Black
- Includes Steinberg Cubase AI
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2022
- Item number544547
- Sales Unit1 piece(s)
- Recording / Playback Channels 2×2
- Number of Mic Inputs 1
- Number of Line Inputs 4
- Instrument Inputs 1
- Number of Line Outs 4
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 129 mm
- Depth 202 mm
- Height 63 mm
- Connection Format 2x USB port Type C
- Weight0,8 kg
- Parallel usable Channels2
- Simultaneous channels2
- Mic-In1
- Mic Ins1
- Mono Line Ins2
- Mono Line-in2
- Stereo-In1
- Stereo Ins1
- Hi-Z Input1
- Master Out6,3 mm bal.
- Aux Ways0
- Number of Pre Aux max.0
- max. Pre Aux Channels0
- PC InterfaceUSB-B
- Audio Interface Input2
- Audio Interface Output2
- USB/SD Direct RecordNo
- CompressorYes
- FX Processor1
- Effect Processor1
- USB PlayNo
- Bluetooth PlayNo
- Lamp ConnectorNo
- Lamp connectionNo
- Foot SwitchButton
- Included in deliveryUSB-A to USB-C Cable
- FootswitchButton
- Bag203410
- Zero latency monitoringYes
- Zones0
- 19″ RackmountNo
- RackmountNo
