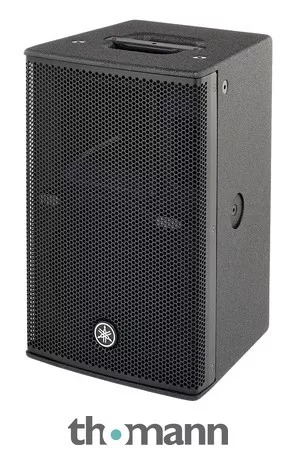

Active Full-Range/Multifunctional Loudspeaker
- Loudspeaker configuration: 10″ woofer with 2″ VC, 1″ tweeter with 1.4″ VC
- Power: 2-Way bi-amped 700 W Class-D amplifiers (500 W LF + 200 W HF)
- Coverage angle (nominal): 90° x 60° (H x V, rotatable)
- Frequency range: 52 – 20000 Hz (-10 dB)
- Maximum level: 128 dB
- DSP signal processor with 2 presets and built-in 2-channel mixer
- Channel 1: Combo XLR Mic/Line input
- Channel 2: Combo XLR Mic/Line input and 2x Cinch input, 1x XLR Line Link out male
- Enclosure material: Plywood
- 3x M10 Rigging points
- 35 mm Speaker flange
- Full-length speaker cover
- Dimensions (W x H x D): 305 x 494 x 300 mm
- Weight: 15.7 kg
- Colour: Black
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2022
- Item number529702
- Sales Unit1 piece(s)
- Power (Manufacturers Specs) 700 W
- Bass Speaker in Inch 10″
- Number of Ways 2-Way
- Colour Black
- Weight 15,7 kg
- Housing Material Wood
- Analog Inputs 2
- Microphone Input 0
- Line Out XLR
- Media Player No
- Remote Control No
- Effects No
- Low Cut No
- Monitor Angle No
- Width305 mm
- Depth300 mm
- Height494 mm
- Sound Pressure in dB128 dB
- Number of HT Speakers1
- HT Speaker in Inch1
- Number of Midrange Speaker0
- Midrange Speaker in Inchwithout
- Number of Bass Speakers1
- BatteryNo
- ConstructionStandard
- Stand Flange35 mm
- Mounting PointM10
- EQ per ChannelYes
- Line InputYes
- Handheld / HeadsetNo
- Horizontal Beam Angle90 °
- Vertical Beam Angle70 °
- Frequency Range (-10dB) from52 Hz
- Frequency Range (-10dB) to20000 Hz
- Active CoolerYes
