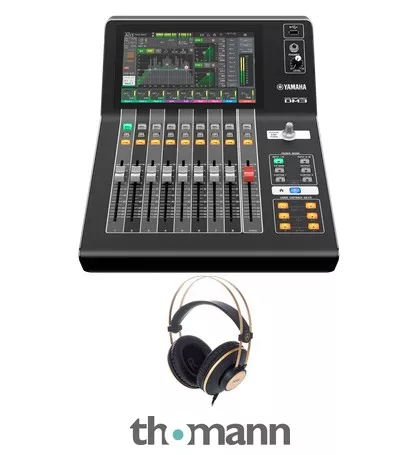

Bundle offer comprising
Yamaha DM3
16-Channel Mixer
- For studio, streaming and live applications
- 9″ multi-touch touchscreen
- 9 motorised faders
- “Turn & Touch” control
- 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
- 16 mono inputs + 1 stereo + 2 FX Return
- 8 outputs
- Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
- DAW Remote Feature (HUI)
- OSC support for installations
- Editor app available for tablet (tablet not included)
- 16 x 16 DANTE interface with 16 inputs and outputs
- 6 freely assignable buttons
- 2 x 2 channel recording/playback via USB port
- 18 selectable effects + GEQ on Mix 1-6 and Stereo Bus
- 8 groups with DCA roll-out
- Dimensions (W x H x D): 320 x 140 x 455 mm
- Weight: 6.5 kg
- Includes Steinberg Cubase AI and VST Rack Elements
Connections
- 16 mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
- 8 line outputs: XLR
- 2 x Dante input (RJ45)
- Stereo headphone output: 6.3 mm jack
- USB to Host
- USB to Device
- Ethernet RJ45
AKG K-92
Headphones
- Closed
- Circumaural
- Impedance: 32 Ohm
- Sensitivity: 113 dB SPL/V
- Frequency range: 16-22000 Hz
- Max. input level: 200 mW
- 3 m Cable with 3.5 mm jack and 6.3 mm adapter
- Weight: 200 g
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2023
- Item number565955
- Sales Unit1 piece(s)
- Max.number of input channels 16
- Microphone Inputs 16
- Analog Line Inputs 16
- Analog Line Outputs 8
- Analog in/ out with plug-in card expandable No
- Digital in-/ outputs expandable No
- Word Clock No
- Motorfader Yes
- Computer interface USB
- MIDI-interface No
- User InterfacePhysical/remote
- Number of faders9
- DSP Input channels16
- DSP Output Channels8
- Busses6
- Number of Microphone Inputs16
- Number of Mono Line Inputs16
- Number of Stereo Line Inputs0
- Physical outputs8
- Digital stagebox connectionNo
- EthernetYes
- HotspotNo
- Multitrack RecordYes
- Special FeaturesDANTE, 18×18 USB Audio Interface
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV/MP3
- RTANo
- FX Processor2
- 31 Band EQ0
- Delay InputYes
- Delay OutputYes
- Matrix2
- DCA/VCA Groups0
- MIDI InterfaceNo
- Sample rate96 kHz
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Digital DanteYes
- CaseNo
- 19″ RackmountOptional
- Height140 mm
- Width320 mm
- Depth455 mm
- Weight6,5 kg
