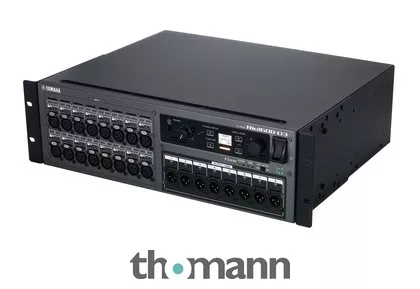

Digital Dante-Stagebox
- analogue inputs / outputs: 16 inputs / 8 outputs
- Dante-Network: 10 receive and 26 transmit channels
- Frequency range: 20 Hz – 20,000 Hz
- Dynamic range: 120 dB
- Equivalent input noise: -128 dBu
- Output noise: -88 dBu
- Crosstalk: -100 dB Input/output channels
- Input gain: -6 dB @ 1,000kHz
- comprehensive display and local control of Gain, Delay and other parameters
- headphone output for monitoring the input and output sound or the last two Dante receive channels
- redundant PSU
- Format: 3 U
- Dimensions (W x H x D): 480 x 132 x 370 mm
- Weight: 9.4 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2025
- Item number610190
- Sales Unit1 piece(s)
- Network Protocol Dante
- Connector RJ45
- Input Channels 16
- Output Channels 8
- Digital Inputs 0
- Digital Outputs 0
- Width480 mm
- Depth in mm370 mm
- Height132 mm
- Weight9,4 kg
- Mounting Height3 U
- 19″ RackkitYes
