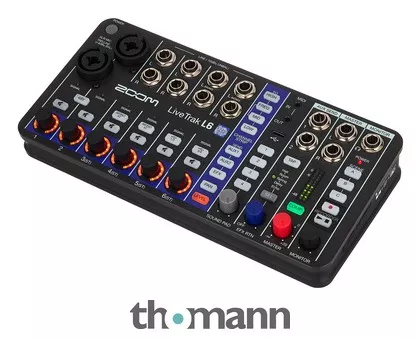

Digital Mixer, Multitrack Recorder and Audio Interface
- Six channels
- Each with 3-band equaliser, two aux sends, internal effect, panorama, level, mute button and encoder with LED ring
- Two mono channels and four stereo channels
- Channel 1 and 2 with XLR/TRS combo socket for microphone and line signals, +48 V phantom power switchable
- Channels 3 – 6 with 6.3 mm jack inputs for line signals
- No levelling required thanks to 32-bit float converter technology
- Simultaneous recording of up to 10 mono tracks and stereo mix to microSD card (32-bit/48 kHz)
- Integrated USB audio interface with 12 inputs and 4 outputs
- Four sound pads that can also be used as loopers
- Internal effects processor with delay, reverb and compressor for the master output
- Three scene memories
- Recording medium: microSDHC or microSDXC card up to max. 1 TB (microSD card not included)
- USB-C port for audio, MIDI and data transfer
- MIDI In/Out: 3.5 mm TRS jack
- Two aux send: 6.3 mm jack
- Stereo master output: 2x 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- Power supply via USB-C port or 4 AA batteries (not included)
- Dimensions (W x D x H): 223 × 114 × 46.5 mm
- Weight: 526 g
- Includes USB-C cable and Zoom AD-17 power supply
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number601509
- Sales Unit1 piece(s)
- Recording / Playback Channels 12×4
- Number of Mic Inputs 2
- Number of Line Inputs 10
- Instrument Inputs 0
- Number of Line Outs 2
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB-C
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 48 kHz
- Max. Resolution Rate in Bits 32 bit
- USB Bus-Powered Yes
- Incl. power supply Yes
- USB Version 2.0
- Width 223 mm
- Depth 114 mm
- Height 47 mm
- Connection Format USB port Type C
- User InterfacePhysical
- Number Of Tracks10
- Number of faders6
- Simultaneous Recording: Amount Of Tracks10
- EffectsYes
- DSP Input channels10
- Storage MediummicroSDHC/microSDXC
- DSP Output Channels4
- Phantom powerYes
- Busses2
- Number of Microphone Inputs2
- XLR Connectors2
- Jack Connectors10
- Number of Mono Line Inputs2
- Number of Stereo Line Inputs4
- Physical outputs4
- MIDI InterfaceIn, Out
- USB connectionYes
- Digital stagebox connectionNo
- Digital ConnectionsUSB
- HotspotNo
- Miscellaneous ConnectorsLineout
- Multitrack RecordYes
- Headphone connectionYes
- Soundcard interfaceUSB-C
- OptionsSound Pads, Scene Memory
- integratated Player/Rec via USB/SDMultitrack
- Recorder FormatWAV
- RTANo
- FX Processor1
- 31 Band EQ0
- Matrix0
- DCA/VCA Groups0
- Sample rate48 kHz
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Included in deliveryPower Supply, USB-A to USB-C Cable
- Digital SPDIFYes
- Digital AES3/ASESEBNo
- Digital MADINo
- Zero latency monitoringYes
- Digital DanteNo
- CaseNo
- 19″ RackmountNo
- Weight0,526 kg
