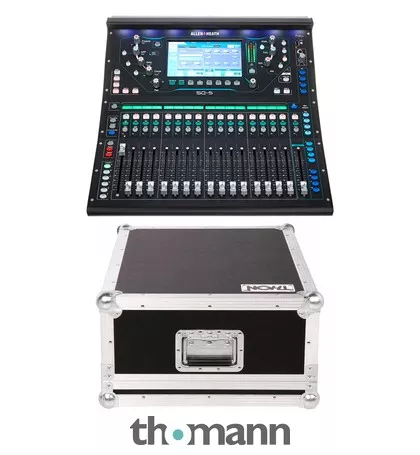

Bundle offer comprising
Allen & Heath SQ5
48-Channel Digital Mixer
- 19″ Rack mountable
- With 96 kHz FPGA processing
- 17 Faders / 6 Layers
- 12 x Stereo mixes (perfect for in-ear monitoring setups) + LR
- 3 x Stereo matrix
- 8 x Internal stereo FX engines with stereo returns
- DEEP processing enables the integration of plug-ins directly into the mixer inputs and mix channels
- 7″ Touch screen
- SLink port for remote audio networking
- 64ch I/O port for audio networking
- 32 x 32 USB audio interface
- SQ-Drive direct recording to USB
- AES output
- Chromatic channel metering
- Integrated LED illumination per fader
- Dedicated physical controls
- 8 assignable SoftKeys
- Channel LCD displays
- Compatible with the ME 1 and ME-500, as well as Dante or Waves audio networking cards
- Dimensions: 440 x 514.9 x 198 mm
- Weight: 10.5 kg
- Corresponding rack mounts: Article Nr 430446 (not included, must be ordered separately)
- Corresponding dust cover: Article Nr 433046 (not included, must be ordered separately)
- Corresponding cases: Art.426485 and Art.497695 (not included in delivery)
Thon Case for Allen & Heath SQ5 PB
Custom-made Case
- For Allen & Heath SQ5
- Made of 7 mm polyboard plastic
- Aluminium edge: 30 x 30 mm
- With foam padding
- 4 Spring-loaded butterfly latches, medium
- 4 Folding handles, medium
- 4 Steel ball corners, medium with integrated L-corner
- Cable duct: 15 cm
- 4 Rubber feet
- Exterior dimensions (WxDxH): 510 x 705 x 285 mm
- Weight: approx. 10.6 kg
- Colour: Black
- Made in Germany
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2024
- Item number586109
- Sales Unit1 piece(s)
- Max.number of input channels 16
- Microphone Inputs 16
- Analog Line Inputs 16
- Analog Line Outputs 12
- Analog in/ out with plug-in card expandable No
- Digital Inputs USB
- Digital Outputs AES, USB
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader Yes
- Computer interface USB, Ethernet
- MIDI-interface No
- User InterfacePhysical/remote
- Number of faders17
- DSP Input channels48
- DSP Output Channels12
- Busses12
- Number of Microphone Inputs16
- Number of Mono Line Inputs0
- Number of Stereo Line Inputs2
- Physical outputs12
- Digital stagebox connectionS-Link
- EthernetEthernet
- HotspotNo
- Special Featuresn/a
- Multitrack RecordYes
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDMultitrack
- Recorder FormatWAV/MP3
- Scribble StripsYes
- RTAYes
- FX Processor8
- 31 Band EQ13
- Delay InputYes
- Delay OutputYes
- Matrix3
- DCA/VCA Groups8
- MIDI InterfaceNo
- Sample rate96 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADINo
- Digital DanteOptional
- 110V capableYes
- CaseOptional
- 19″ RackmountOptional
- Height198 mm
- Width440 mm
- Depth515 mm
- Weight10,5 kg
