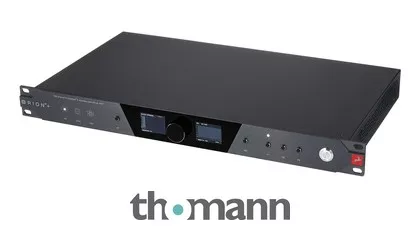

128-Channel Thunderbolt / USB Audio Interface
- AD/DA converter with up to 130dB dynamic range at 24bit / 192kHz
- 4th generation Antelope 64-bit clocking technology
- Control panel with preset recall and customisable signal routing matrix
- Optional surround and immersive audio functions, Dolby Atmos-enabled speaker calibration and monitoring function
- 4x 32-channel zero-latency stereo mixers for direct monitoring and signal summing
- 128 I/O channels of 24-bit, 192kHz audio via Thunderbolt 3
- 32 I/O channels of 24-bit, 192kHz audio via USB 2.0 / 3.0
- 128 I/O channels via optical MADI with up to 48kHz
- 8 I/O channels via ADAT with up to 48kHz
- 2 I/O channels via S/PDIF with up to 192kHz
- 32 Analogue line inputs: 4x DB25
- 32 Analogue line outputs: 4x DB25
- 2 Monitor outputs: 6.3 mm jack
- ADAT input / output
- 2 MADI inputs / outputs
- S/P-Dif input / output: Cinch
- 10M input for Antelope Atomic Clock: BNC
- Word clock input: BNC, 75Ohm
- 2 Word clock outputs: BNC, 75Ohm
- USB 2.0 Type-C port
- Compatible with Antelope MRC multi-channel remote control
- Windows 10 and Mac OSX 10.14 or higher
- Installation size: 19″/1U
- Weight: 3.4 kg
- Dimensions: 483 x 44 x 280 mm
- Includes power supply unit and USB-C cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2023
- Item number568531
- Sales Unit1 piece(s)
- Recording / Playback Channels 32×32
- Number of Mic Inputs 0
- Number of Line Inputs 32
- Instrument Inputs 0
- Number of Line Outs 34
- Headphone Outs 0
- Phantom Power No
- Number of S/PDIF Connectors 1
- Number of ADAT Connectors 1
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 2
- Ethernet 0
- Other Connectors Thunderbolt 3
- MIDI interface No
- Word Clock 2xIn, 2xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 483 mm
- Depth 280 mm
- Height 44 mm
- Connection Format USB port Type C
- Amount Of Channels32
- AD ConversionYes
- DA ConversionYes
- Number of Instrument Inputs0
- S/PDIF ConnecorYes
- Number of Line Outputs34
- ADATYes
- Word clockYes
- Number of analog inputs32
- Number of Analog Outputs32
- AES/EBU Connectors0
- Special FeaturesMasterclock
- Incl. Power SupplyYes
- Windows Thunderbolt driverYes
- Thunderbolt Version2
- Width in mm483 mm
- Depth in mm280 mm
- Height in mm44 mm
- Included in deliveryPower Supply, Power Cable, USB-C Cable, USB-A to USB-C Adaptor
- Zero latency monitoringYes
