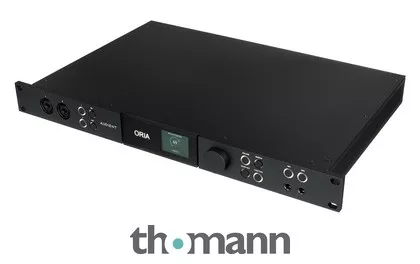

USB 2.0 immersive audio interface and monitor controller with USB-C connection
- Supports up to 9.1.6 speaker setups
- Onboard Room Calibration DSP
- Sonarworks SoundID Referenz Integration
- Remote Control Software
- AD/DA conversion: 24bit / 96kHz
- Dynamic range inputs: 122 dB
- Dynamic range outputs: 126 dB
- 2 x 16 Channel surround outputs (analogue & AES)
- 2 z Stereo line outputs (relay-switched)
- 2 x Independent stereo headphone outputs
- 2 x Audient Console microphone preamps (microphone / line / instrument)
- 2 x ADAT, word clock input and output
- Fanless design
- Dimensions: 19″ / 1U
- Includes Sonarworks SoundID reference measurement microphone and 60-day free trial version of SoundID Reference for Multichannel
- Note: After the 60-day trial period has expired, the created profiles can no longer be accessed. A licence must be purchased for further use.
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2024
- Item number584722
- Sales Unit1 piece(s)
- Recording / Playback Channels 34×38
- Number of Mic Inputs 2
- Number of Line Inputs 2
- Instrument Inputs 2
- Number of Line Outs 20
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 2
- Numer of AES/EBU Connectors 16
- Number of MADI Connectors 0
- Ethernet 1
- Other Connectors None
- MIDI interface No
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Connection Format USB port Type C
- Included in deliverySonarworks SoundID Reference Microphone, Power Cable
- Zero latency monitoringYes
