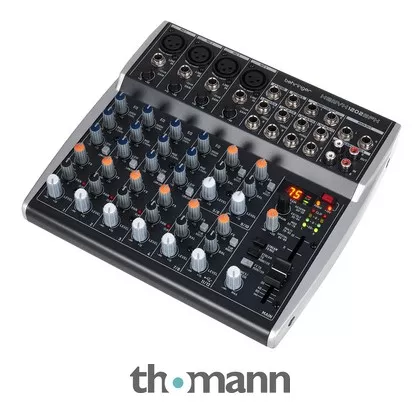

Analogue Mixer
- 12-channel mixer with USB interface
- For streaming, podcasts and studio recording
- Four microphone inputs: XLR with XENYX mic preamps (1, 2, 3 and 4)
- Four mono line inputs: 6.3 mm unbalanced jack (1, 2, 3 and 4)
- Three stereo line inputs: 6.3 mm unbalanced jack (5/6, 7/8, 9/10)
- One stereo line input: balanced 6.3 mm jack (11/12)
- Two track inputs and outputs with stereo USB audio interface
- Stereo headphone output: 6.3 mm
- Stereo RCA inputs
- Monitor output: 6.3 mm unbalanced jack (right/left)
- Main output: 6.3 mm unbalanced jack (right/left)
- Klark Teknik FX processor
- 3-band EQs
- FX send control per channel
- Dimensions (H x W x D): 50 x 195 x 248 mm
- Weight: 1.5 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2024
- Item number565808
- Sales Unit1 piece(s)
- Simultaneous channels 8
- Mic-In 4
- Mono Line-in 7
- Stereo-In 4
- Hi-Z Input 0
- Phantom Power 48 V
- Master Out 6,3 mm unbal.
- Aux Ways 1
- max. Pre Aux Channels 0
- PC Interface USB-B
- Audio Interface Input 2
- Audio Interface Output 2
- Multitrack-Recording No
- USB/SD Direct Record No
- Rec Out (Analog) Yes
- Low Cut No
- Inserts No
- Direct Out No
- Parametric No
- Compressor No
- Panorama Yes
- PFL No
- FX Processor 1
- USB Playback No
- Bluetooth Playback No
- Lamp connection No
- Footswitch No
- Matrixmixer No
- Bag No
- Zones 0
- 19″ Rackmount No
- Width195 mm
- Depth248 mm
- Height50 mm
- Weight1,5 kg
- Parallel usable Channels8
- Mic Ins4
- Mono Line Ins7
- Stereo Ins4
- Number of Pre Aux max.0
- Effect Processor1
- USB PlayNo
- Bluetooth PlayNo
- Lamp ConnectorNo
- Foot SwitchNo
- RackmountNo
