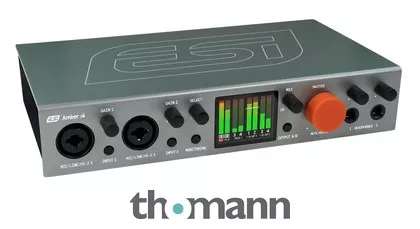

USB-C Audio Interface
- Four input and output channels with 24 bit / 192 kHz
- Dynamic range: 115 dB A
- Real-time monitoring with balance control
- One master and two headphone volume controls
- Two gain controls
- Stereo loopback support for internal recordings
- Two class A microphone inputs with combo socket
- 48 V phantom power
- Two instrument inputs Hi-Z: 6.3 mm jack
- Four line inputs: 6.3 mm jack balanced
- Four line outputs: 2 x 6.3 mm jack balanced
- Two headphone outputs: 6.3 mm jack
- Two bi-directional MIDI connections
- LCD display
- Power supply via USB-C
- Optional external 5 V power supply
- EWDM driver (Ultra Low Latency) for Windows 10 / 11 with ASIO 2.0, MME, WDM and DirectSound support and virtual channels
- Supports OS X / macOS (10.9 and higher) via the native CoreAudio USB driver from Apple
- Includes Cubase LE App, Deckadance LE, Bitwig 8-Track and 3 months subscription for JackTrip Virtual Studio
- Dimensions (W x D x H): 228 x 140 x 45 mm
- Weight: 698 g
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2025
- Item number618395
- Sales Unit1 piece(s)
- Recording / Playback Channels 4×4
- Number of Mic Inputs 2
- Number of Line Inputs 4
- Instrument Inputs 2
- Number of Line Outs 4
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB-C
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- Width 228 mm
- Depth 140 mm
- Height 45 mm
- Connection Format USB port Type C
- Included in deliveryUSB-A to USB-C Cable, USB-C Cable
- Zero latency monitoringYes
