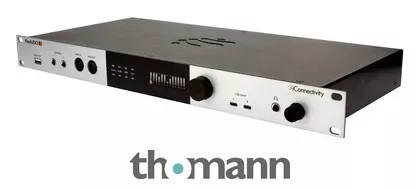

USB Live Playback audio / MIDI interface
- For simultaneous operation on two computers for a crash-proof computer setup in live mode
- In the event of a fault on one computer, there is an automatic switchover to the second computer (automatic and manual switchover between the computer systems is possible).
- 24 Bit / 96 kHz AD/DA-converter
- Outputs: 12 XLR line balanced
- Stereo headphone output: 6.3 mm jack
- 2 USB C ports for two computers simultaneously
- 2 x Foot pedal connection
- USB MIDI host connection for up to 8 MIDI devices
- 1x MIDI DIN connection (In/Out) and Ethernet MIDI network connection
- Touch control panel with metering display
- Includes external power supply unit
- Dimensions (W x H x D): 483 x 44 x 200mm
- Weight: 2.7 kg
System requirements:
- Windows 10, Mac OS X 10.11 or higher
- iOS 8 and higher (Apple Lightning to USB camera adapter not included)
- One free USB port
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number575751
- Sales Unit1 piece(s)
- Recording / Playback Channels 0x12
- Number of Mic Inputs 0
- Number of Line Inputs 0
- Instrument Inputs 0
- Number of Line Outs 12
- Headphone Outs 1
- Phantom Power No
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 1
- Other Connectors None
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 483 mm
- Depth 200 mm
- Height 44 mm
- Connection Format USB port Type C
- Included in deliveryPower Cable, 2x USB-C Cables, 2x USB-A to USB-C Adaptors
- Zero latency monitoringYes
