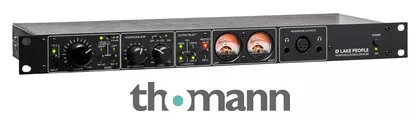

Monitor Controller and Headphone Amplifier
- With balanced headphone amplifier with X-Feed and pre-gain in 19″ format
- With functions such as Solo Left, Solo Right, Channel Swap, Phase Reverse and Mono Switch
- 2x VU-Meter
- Volume control
- Input parameter: 10 kOhm
- Output parameter: 1 Ohm
- Max. input impedance: +22 dBu
- Max. output impedance: +26 dBu
- Frequency range: 5 – 80,000 Hz (-0.5 dB)
- Crosstalk: <-100 dB @ 1/15 kHz
- THD+N: <-100 dB
- Dynamic range:> 125 dB
- Stereo line inputs: 2 x 3-pin XLR, balanced
- Stereo slave output: 3-pin XLR, balanced
- Stereo line outputs: 2 x 3-pin XLR, balanced
- Stereo headphone outputs: 2 x 6.3 mm jack, unbalanced, 4-pin XLR, balanced
- Stainless steel housing
- Front panel made of black anodised aluminium
- Power supply: 115 / 230 V AC, max. 15 VA
- Format: 19″ / 1 U
- Dimensions (L x W x H): 483 x 188 x 44 mm
- Weight: 2.5 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2025
- Item number615801
- Sales Unit1 piece(s)
- Number Of Monitoring Outputs (Stereo) 2
- Headphone connection 3
- Talkback Function No
- Built-in AD / DA converter No
- Incl. Remote control No
- Level Meter Yes
- Number of 2 track inputs 2
- Summing Function Yes
- Surround No
- Design 19″ / 1U
- Number of stereo channels2
- Amount Of Inputs2
- Rack formatYes
- Dimensions483 x 188 x 44 mm
