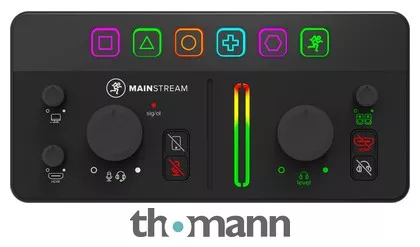

Live streaming and video capture interface
- Programmable control buttons
- HDMI recordings with 1080p x 60 fps
- HDMI loop-through with 4K x 60 fps
- Integrated USB-C hub with two ports
- +48V phantom power switchable
- USB Bus-powered
- Mute switch for microphone and aux
- Matrix software for effects, routing, with 4 hardware inputs, 6 virtual inputs and 24 virtual pads
- Microphone input: XLR / 6.3 mm jack
- Headset / microphone connection 3.5 mm mini jack
- Aux input: 3.5 mm mini jack
- 2 Line outputs: 6.3 mm jack
- Stereo headphone output: 6,3 mm jack
- HDMI input
- HDMI pass through
- 2x USB-C (Hub)
- USB-C for PC/Mac connection
- Dimensions (WxDxH): 214 x 95 x 62 mm
- Weight: 0.6 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2024
- Item number583716
- Sales Unit1 piece(s)
- Recording / Playback Channels 3×2
- Number of Mic Inputs 1
- Number of Line Inputs 1
- Instrument Inputs 0
- Number of Line Outs 2
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB-C
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 48 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 3.0
- Width 214 mm
- Depth 62 mm
- Height 95 mm
- Connection Format USB port Type C
- Included in deliveryUSB-C Cable
- Zero latency monitoringYes
