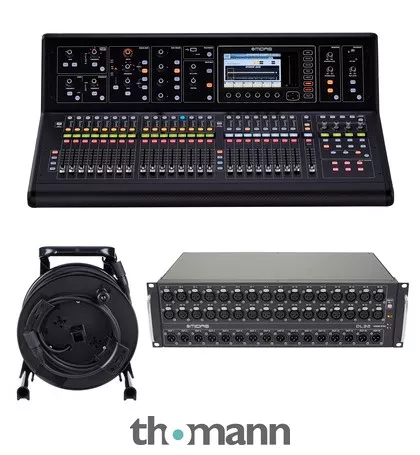

Bundle offer comprising
Midas M32 Live
Digital Mixing Console
- 32 XLR Inputs with Midas preamps
- 16 XLR outputs
- 25 Mix buses
- 8 DCA and 6 Mute groups
- 8 Stereo effects
- 40-Bit floating point DSP
- 25 x 100 mm Motor fader
- 7″ Colour display
- 32×32 USB Audio Interface
- DAW remote control
- Wireless Remote Control via IOS App
- Dimensions: 891 x 607 x 256 mm
- eight: 24.5 kg
- Includes DN32-Live Recording and Playback Card
- Suitable case: Article Nr. 454375 and Article Nr. 347869 (not included)
Midas DL32
Digital Stagebox
- 32 inputs
- 16 outputs
- AES50 network (Klark Teknik)
- Up to 100 m CAT-5e cable possible
- Dual ADAT output
- MIDI input and output
- USB port for firmware updates
- Depth of the metal brackets on the front: 2.2 cm
- Format: 19″/ 3U
- Installation depth: 21 cm
Klark Teknik NCAT5E-50m
Network Cable
- Suitable for touring
- Wear-resistant and shielded Cat5e network cable
- 50 Meter roll
- Robust and very flexible original Neutrik EtherFlex® Cat5e cable
- Dual shielding protects against EMI and ESD interference
- Tested for AES50 and EtherSound audio network
- Rugged, lightweight Schill cable drum with auxiliary winder and integrated brake
- Hirose RJ45 connections protected by Neutrik etherCON plug at both ends
- Rubber caps on etherCON connections for protection during transport
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2023
- Item number559715
- Sales Unit1 piece(s)
- Max.number of input channels 32
- Microphone Inputs 65
- Analog Line Inputs 4
- Analog Line Outputs 16
- Analog in/ out with plug-in card expandable Yes
- Digital in-/ outputs expandable Yes
- Word Clock No
- Motorfader Yes
- Computer interface USB
- MIDI-interface No
- User InterfacePhysical/remote
- Number of faders25
- DSP Input channels40
- DSP Output Channels24
- Busses16
- Number of Microphone Inputs32
- Number of Mono Line Inputs70
- Number of Stereo Line Inputs1
- Physical outputs40
- Digital stagebox connectionAES50
- EthernetEthernet
- HotspotNo
- Special FeaturesDN32-Live Recording and Playback Card
- Multitrack RecordYes
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- Scribble StripsYes
- RTANo
- FX Processor8
- 31 Band EQ8
- Delay InputYes
- Delay OutputYes
- Matrix6
- DCA/VCA Groups8
- MIDI InterfaceMidi-Din
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemOptional
- Expansion Card slots1
- Digital ADATOptional
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADIOptional
- Digital DanteOptional
- 110V capableYes
- CaseIncluded
- 19″ RackmountNo
- Height256 mm
- Width891 mm
- Depth607 mm
- Weight24,5 kg
