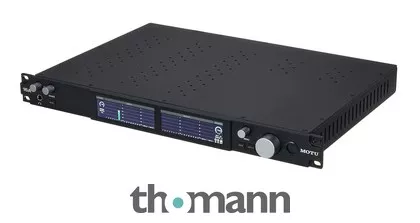

32 x 34 Thunderbolt/USB/AVB Audio Interface
- 32 inputs x 34 outputs
- Two 3.9″ displays for all inputs and outputs
- ESS Sabre32 Ultra DAC-Technology
- DSP-controlled mixer with 64 inputs, 32 busses and DSP effects (reverb, 4-band equaliser, gate, compressor and high-pass filter)
- Patchbay routing to route any source signal to any destination
- 2x Gigabit Ethernet ports support AVB daisy-chaining and networking with standard CAT 5/6 cables
- 16x 8-channel AVB streams inputs and outputs (128 audio channels in total)
- WLAN control via the CueMix Pro app
- Network management functions (detection and control of multiple devices in the network)
- Control room functions such as talkback and A/B/C monitor selection via the CueMix Pro software
- Headphone output with independent volume control
- Dynamic range line outputs: 125 dB
- Dynamic range line inputs: 120 dB
- Resolution: 24-Bit / 192 kHz
- 16 balanced, DC-coupled 6.3 mm jack outputs
- 16 balanced 6.3 mm jack inputs
- 2x ADAT (16 ADAT channels)
- Wordclock In/Out
- System requirements: Windows 10 or higher, Mac OSX 12 or higher
- Dimensions: 482 x 311 x 44 mm
- Weight: 5 kg
- Includes 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2025
- Item number615167
- Sales Unit1 piece(s)
- Recording / Playback Channels 32×34
- Number of Mic Inputs 0
- Number of Line Inputs 16
- Instrument Inputs 0
- Number of Line Outs 16
- Headphone Outs 1
- Phantom Power No
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 2
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 2
- Other Connectors None
- MIDI interface No
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 4.0
- Width 482 mm
- Depth 311 mm
- Height 44 mm
- Connection Format USB port Type C
- Number of Instrument Inputs0
- Number of Line Outputs16
- AES/EBU Connectors0
- Incl. Power SupplyYes
- Thunderbolt Version4
- Width in mm483 mm
- Depth in mm177 mm
- Height in mm44 mm
- Included in deliveryPower Cable, USB-C Cable
- Zero latency monitoringYes
