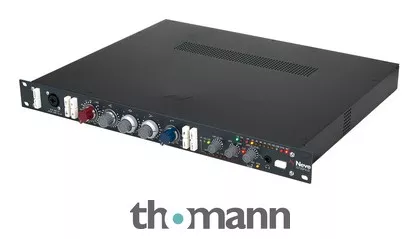

USB 2.0 Audio Interface
- 24 Bit / 192 kHz AD/DA converter
- 1 x 1073 Microphone/line/instrument preamplifier with EQ circuit
- 80 dB Gain
- 9 Inputs and 12 outputs
- 2 XLR monitor outputs
- 1 Stereo headphone output
- 1 ADAT I/O
- Neve Marinair transformers in the input and output stages
- Balanced pre/post EQ insert
- Switchable 48V phantom power supply
- Hi/Lo impedance
- -20 dB pad and DI ground lift
- 7-Step LED signal level display
- Dimensions (W x D x H): 480 x 360 x 44 mm
- Weight: 5.47 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2024
- Item number590729
- Sales Unit1 piece(s)
- Recording / Playback Channels 9×12
- Number of Mic Inputs 1
- Number of Line Inputs 1
- Instrument Inputs 1
- Number of Line Outs 2
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 1
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 480 mm
- Depth 360 mm
- Height 44 mm
- Connection Format USB port Type B
- Included in deliveryPower Supply, Power Cable, USB-B to USB-C Cable
- Zero latency monitoringYes
