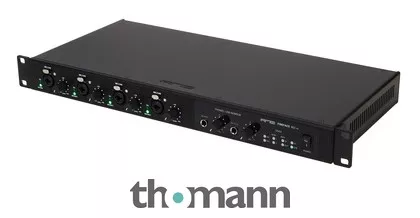

USB Audio Interface
- Special edition
- 60 Channel USB 2.0
- 24 Bit / 192 kHz
- Built-in DSP mixer with effects section: EQ, dynamics and reverb
- 4 Analogue microphone preamps with gain control
- Inputs can be controlled remotely via software
- TotalMix Remote
- TotalMix FX mixing / routing
- DigiCheck software
- DC-coupled outputs – CV/Gate Voltage Control
- Stand-alone operation with setup recall
- ICC – Intelligent Clock Control
- SteadyClock FS
- +48 V phantom power
- Class compliant
- Built-in switched-mode power supply: 100 – 240 V AC, 30 Watts
- Format: 19″/ 1U
- Dimensions (W x H x D): 438 x 44 x 242 mm
- Weight: 2.8 kg
- Includes rack brackets
Connections:
- 4 x Mic / Instrument / Line input XLR / jack 6.3 mm combo
- 8 x Line input 6.3 mm jack balanced
- 8 x Line output 6.3 mm jack balanced
- AES / EBU input and output XLR
- Word Clock input and output BNC
- 2 ADAT / S/PDIF optical input and output
- 2 Stereo headphone outputs 6.3 mm jack
- MIDI input and output
- USB
- Remote connection for optional ARC USB (not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number601644
- Sales Unit1 piece(s)
- Recording / Playback Channels 30×30
- Number of Mic Inputs 4
- Number of Line Inputs 12
- Instrument Inputs 4
- Number of Line Outs 8
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 2
- Number of ADAT Connectors 2
- Numer of AES/EBU Connectors 1
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface Yes
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 483 mm
- Depth 242 mm
- Height 44 mm
- Connection Format USB port Type B
- Included in deliveryPower Cable, USB-A to USB-B Cable, TOSlink Cable
- Zero latency monitoringYes
