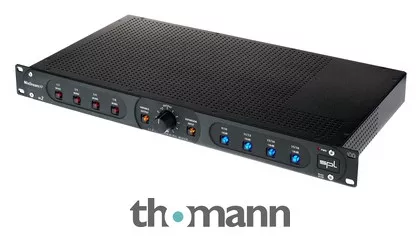

Analogue 16-in-2 Summing Unit
- With Class A technology
- Internal audio operating voltage: +/-30 V
- Individually switchable -18 dB level reduction for the last four stereo channels
- Mono switch for the first four channel pairs
- Switchable output control for the sum signal
- 16 Inputs via DB25 (Tascam standard)
- XLR main output
- Separate monitor output with XLR connections
- Expansion input for expanding the summing unit
- Dimensions (W x D x H): 482 x 237 x 44 mm
- Weight: 3.7 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2023
- Item number581483
- Sales Unit1 piece(s)
- Concurrent Channels 16
- 110V Support Yes
- Input Connector Sub-D
- Insert No
- Panorama No
- Direct Outputs No
- Stereo Outputs 2
- Level Meter No
- 19″ Unit Yes
