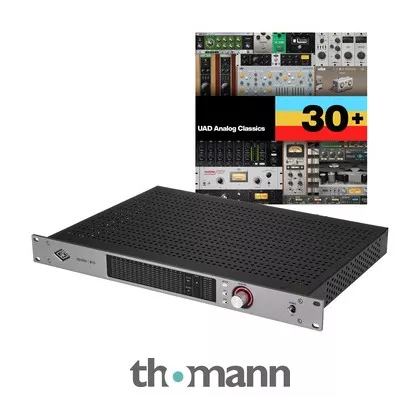

18 x 20 Thunderbolt 3 Audio Interface
- 24 Bit / 192 kHz
- 6-Core SHARC DSP for internal UAD real-time processing
- Auto Gain function
- Switch for monitor switching
- Dim or mono assignable function button
- LED meter
- Built-in talkback microphone
- Support of surround formats up to 7.1 with speaker calibration and downmix
- Dual Crystal Clocking for a low-jitter environment and pure, artefact-free recordings as well as stable stereo imaging
- Includes UAD Analog Classics Plug-in Bundle for Mac/Windows
- Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
- Up to 4 Apollos cascadable with Thunderbolt connection
- Format: 19″/1U
- Includes external power supply unit
Connectors:
- 16 Line inputs Sub-D25
- 2 Monitor outputs XLR
- 16 Line outputs Sub-D25
- AES/EBU input and output
- Word Clock input and output BNC
- 2 Thunderbolt 3
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number600537
- Sales Unit1 piece(s)
- Recording / Playback Channels 18×20
- Number of Mic Inputs 0
- Number of Line Inputs 16
- Number of Instrument Inputs 0
- Number of Line Outputs 18
- Headphone Outs 0
- Phantom Power No
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- AES/EBU Connectors 1
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI Connectors No
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- Bus-Powered No
- Incl. Power Supply Yes
- Windows Thunderbolt driver Yes
- Thunderbolt Version 3
- Width in mm 483 mm
- Depth in mm 308 mm
- Height in mm 44 mm
