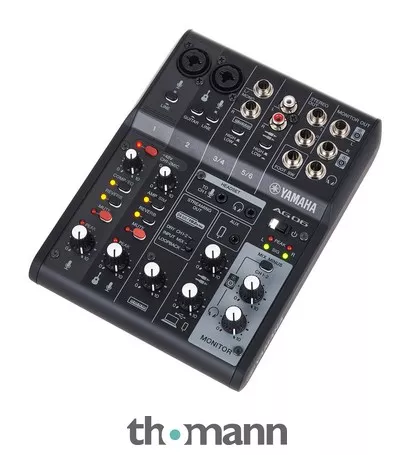

Combined USB 2.0 audio interface and mixing console
- 24 bit / 192 kHz
- +48 V phantom power switchable
- Pad switch
- DSP effects compressor, equaliser, SPX reverb and AMP simulation
- FX bypass (via optional footswitch, not included)
- iPad compatible with optional Camera Connection Kit (not included)
- 2 Mic/line inputs: XLR/jack combo plugs (input 2 switchable to Hi-Z)
- 2 Line inputs: 6.3 mm jack
- 2 Line inputs: RCA
- 4 Line outputs: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- Footswitch connection
- Headset connection: 2x 3.5 mm mini-jack (earphone and mic)
- AUX input: 3.5 mm mini-jack stereo
- USB-C connection
- Power supply via USB (5V, 500 mA)
- Dimensions: 155 x 63 x 202 mm
- Weight: 0.95 kg
- Colour: Black
- Includes Steinberg Cubase AI and USB cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2022
- Item number544559
- Sales Unit1 piece(s)
- Recording / Playback Channels 2×2
- Number of Mic Inputs 2
- Number of Line Inputs 6
- Instrument Inputs 1
- Number of Line Outs 4
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 2.0
- Width 155 mm
- Depth 202 mm
- Height 63 mm
- Connection Format USB port Type B, Micro B
- Weight1 kg
- Simultaneous channels4
- Parallel usable Channels4
- Mic-In2
- Mic Ins2
- Mono Line Ins3
- Mono Line-in3
- Stereo Ins2
- Stereo-In2
- Hi-Z Input1
- Master Out6,3 mm bal.
- Aux Ways0
- Number of Pre Aux max.0
- max. Pre Aux Channels0
- PC InterfaceUSB-C
- Audio Interface Input2
- Audio Interface Output2
- USB/SD Direct RecordNo
- Effect Processor1
- FX Processor1
- USB PlayNo
- Bluetooth PlayNo
- Lamp ConnectorNo
- Lamp connectionNo
- Included in deliveryUSB-A to USB-C Cable
- FootswitchButton
- Foot SwitchButton
- Bag203410
- Zones0
- Zero latency monitoringYes
- 19″ RackmountNo
- RackmountNo
